Descriptions

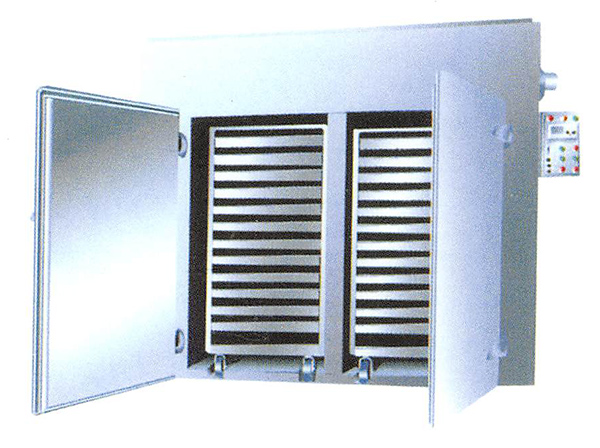

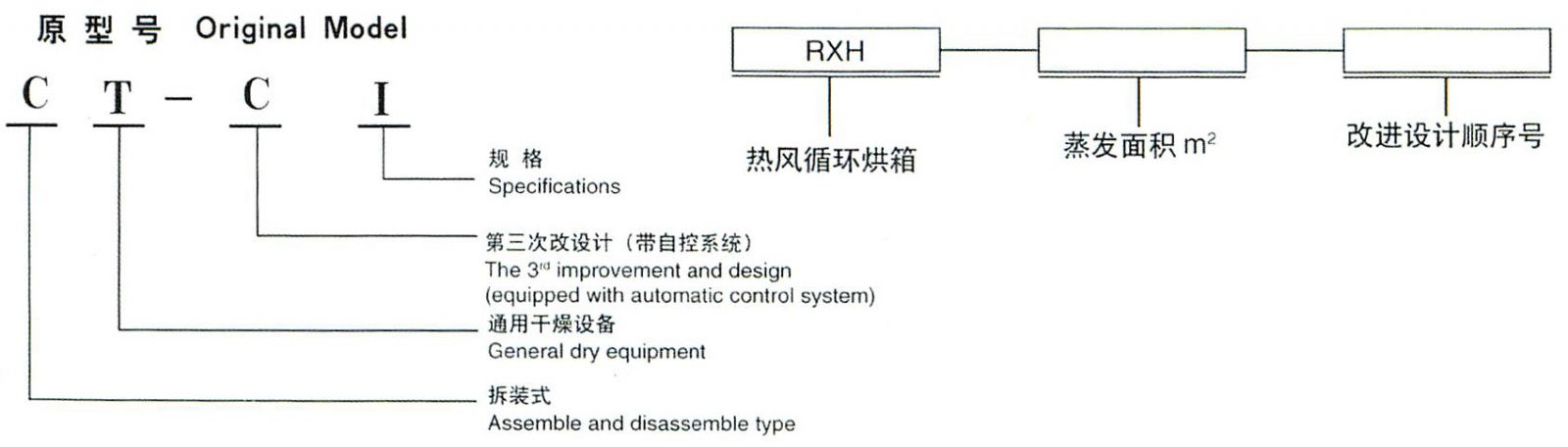

※CT-C series hot air circulation drying oven uses a low noise and high temperature proof axial flow blower and an automatic temperature control system. The whole circulation system is the fully enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-45% of the present one. The highest heat efficiency can reach 50%. The successful design of CT-C hot air circulation drying oven makes that the hot air circulation drying oven in our country catch the advanced level both at home and abroad. In order to save a large quantity of the energy in our country. In order to enhance the economic results of the enterprises. In 1990, the medicine management bureau of the State issued the industry standard and the uniform type is RXH.
Main technical parameters of hot air circle oven and relevant explanation
1. For the heating source, there are two kinds: the steam, and the electrical or far infrared steam for our. users to choose,
2. The temperatures to be used: steam heating 50-130℃, Max.140℃.
3. The moisture while using the electrical or temperatures: 50-300℃.
4. There are the automatic control system and the computer control system for users' selection.
5. Commonly used team pressure 0.2-0.8 Mpa (2-8kg/cm2 ).
6. If the electrical heating and type one, the calculation is 15KW, and the practical use is 5-8kw/h.
7. The special requirements should be indicated at the time of order.
8. The price for the non-standard oven should be consulted.
9. The use temperatures more than 140℃ and less than 60℃ should be indicated at the time of order.

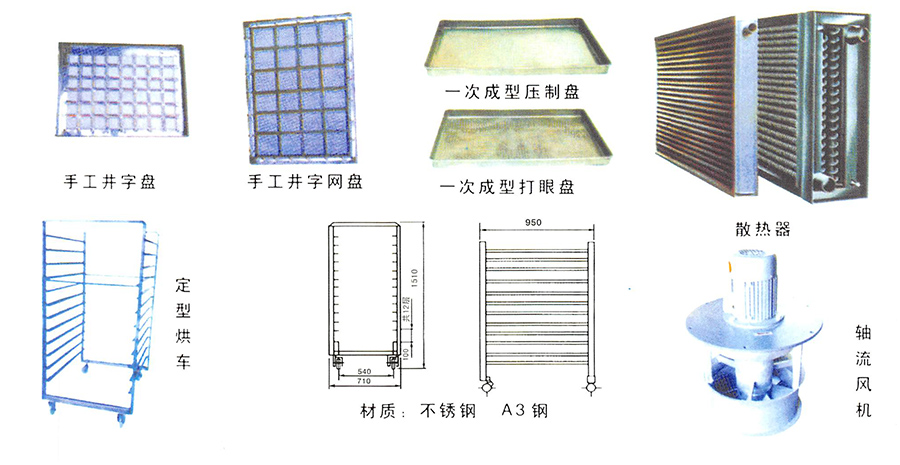

10. The ovens and baking plates made by our factory are uniform in the dimensions, and can be exchanged each other.
11, The baking plate dimensions: 460×640×45mm
Application
※ It is suitable for heating and solidfication,drying and dehydration of raw materials in resin, electric elements, drying vanish and so on.
Feature
※ Most of hot air is circled inside the oven. The hot efficiency is high. The energy source can be saved.
※ lt uses enhanced ventilation and equips with adjustable air divider plate inside the oven, raw material can be dried evenly. The hot source can be steam, hot water, electricity or far infrared.
※ The machine has low noise and stable operation, the temperature can be controlled automatically, the installation and maintenance are very convenient.
※ The applied fields are wide and can be suitable for all kinds of raw materials. It is a comprehensive drier.
Technical parameters
| Type for the Industry Standard | Type and Specification | Drying Capacity for Each time (kg) |
Equipped power(kw) | Steam to Be consumed(kg/h) | Heat radiation Area(m2) | capacity (m3/h) |
T difference difference between up and low(℃) | Equipped baking tray(pieces) | Overall climension W×D×H(mm) | Equipped drying trolly(set) |
| RXH-14-B | CT-I | 100 | 1.1 | 20 | 20 | 3400 | ±2 | 48 | 2430×1200×2375 | 2 |
| RXH-27-B | CT-II | 200 | 1.1 | 40 | 40 | 5200 | ±2 | 96 | 2430×2200×2480 | 4 |
| RXH-41-8 | CT-III | 300 | 2.2 | 60 | 80 | 9800 | ±2 | 144 | 3430×2200×2620 | 6 |
| RXH-54-B | CT-IV | 400 | 2.2 | 80 | 100 | 9800 | ±2 | 192 | 4460×2200×2620 | 8 |
| RXH-5-C | CT-C-0 | 25 | 0.45 | 5 | 5 | 3450 | 0 | 16 | 1280×1100×1750 | 0 |
| RXH-7-C | CT-C-IA | 50 | 0.45 | 10 | 10 | 3450 | ±2 | 24 | 1400×1200×2000 | 1 |
| RXH-14-C | CT-C-I | 100 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 |
| RXH-27-C | CT-C-Ⅱ | 200 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300×2200×2000 | 4 |
| RXH-27A-C | CT-C-IIA | 200 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 4460×1200×2290 | 4 |
| RXH-41-C | CT-C-III | 300 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 2300×3220×2000 | 6 |
| RXH-42A-C | CT-C-III | 300 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 3430×2200×2000 | 6 |
| RXH-54-C | CT-C-IV | 400 | 1.8 | 72 | 100 | 103800 | ±2 | 1920 | 4460×2200×2290 | 8 |
| RXH-25-A | High effect and high temperature far infrared sterilization oven | 1200×1000×1600 | 1 | |||||||
